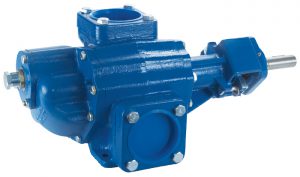

Ranger, Inc. manufactures a precision built helical gear pump for industrial applications. The capacity range is available from 25 GPM to 360 GPM and pressures to 125 PSI.

Ranger, Inc., located in Eads, TN, USA, has been producing quality pumps and parts since 1989. Ranger Pumps are designed to use as low speed pumps for both low and high viscosity liquids. Viscosities upward to 1,000,000 SSU (200,000 CP) can be pumped. Ranger pumps sizes are 2", 2-1/2", 3" & 4" in size. Flows are 20 GPM to 360 GPM with pressure capabilities to 125 PSI (862 KPA). Ranger also has Basket-Type Line Strainers & Foot Mounted Gear Reducers available.



VERSATILITY * THICK-N-THIN * BLENDING
MIXING * TRANSFER
SOLVENTS * MOLASSES * GASOLINE * RESINS
OIL * ASPHALT * CHEMICALS



SERIES   300 RPM 400 RPM 500 RPM 600 RPM 700 RPM
PSI SSU 30 100 1,000 10,000 30 100 1,000 10,000 30 100 1,000 30 100 1,000 30 100 1,000
119P
119M		 25 GPM 31 32 33 33 42 43 44 44 53 54 55 64 65 66 75 75 77
HP 0.9 0.9 1.1 1.7 1.2 1.2 1.6 2.4 1.6 1.6 2.4 2.1 2.1 2.9 2.5 2.5 3.5
50 GPM 29 31 33 33 40 42 44 44 51 53 55 62 64 65 73 75 77
HP 1.3 1.3 1.5 2.1 1.9 1.9 2.3 3 2.4 2.4 3.2 2.9 2.9 3.7 3.5 3.5 4.5
100 GPM   29 32 33   41 43 43   51 54   63 65   74 76
HP   2.3 2.5 3.1   3.2 3.6 4.2   4 4.8   4.9 5.7   5.7 6.7
125 GPM   27 32 33   39 43 43   50 54   62 65   72 76
HP   2.8 3 3.6   3.8 4.2 4.9   4.7 5.5   5.9 6.7   6.9 7.9
179P
179M		 25 GPM 46 49 50 51 63 66 67 68 80 83 84 95 100 101 115 117 118
HP 1 1 1.4 2.3 1.4 1.4 2.1 3.7 2 2 3 2.7 2.7 4.1 3.3 3.3 5.3
50 GPM 42 47 50 51 59 64 67 68 76 81 84 93 98 101 111 115 118
HP 1.7 1.7 2.1 3 2.4 2.4 3.1 4.7 3.2 3.2 4.2 4.1 4.1 5.5 5 5 7
100 GPM   43 49 50   60 66 67   77 83   94 100   111 117
HP   3.1 3.5 4.4   4.3 5 6.6   5.6 6.6   7 8.4   8.4 10.4
125 GPM   41 48 50   58 65 66   75 82   92 99   109 116
HP   3.9 4.3 5.2   5.2 5.9 7.6   6.7 7.7   8.5 9.9   10.1 12.1
229P
229M
228P
228M		 25 GPM 63 65 66 66 85 87 88 89 107 109 110 129 131 132 151 153 154
HP 1.4 1.4 1.8 2.6 2.4 2.4 3.2 5.1 3 3 4.1 3.5 3.5 4.8 4.5 4.5 6.4
50 GPM 61 63 65 66 83 85 87 89 105 107 109 127 129 131 149 151 153
HP 2.4 2.4 2.8 3.6 3.7 3.7 4.5 6.3 4.5 4.5 5.6 5.4 5.4 6.7 6.6 6.6 8.5
100 GPM   61 65 66   83 86 89   105 108   127 130   149 152
HP   4.3 4.7 5.5   6.1 6.9 8.9 7.5 8.6   9.2 10.5 11 12.9
125 GPM   60 64 66   82 86 88   104 108   126 130   148 152
HP   5.3 5.7 6.5   7.4 8.4 10.2   9.2 10.3   11.3 12.6   13.5 15.4
489P
489M		 25 GPM 140 142 146 158 189 192 196 206 249 251 256 294 297 302 348 352 358
HP 4.3 4.3 5.5 6.3 6.1 6.8 8 10 8.3 9 10.9 10.7 11.7 14.6 14.2 14.5 18.2
50 GPM 123 130 139 143 172 180 189 202 232 240 248 277 287 293   340 348
HP 6.8 6.9 8.3 9.7 9.6 10.2 11.5 14.1 12 12.6 14.6 15 16.1 18.8   19.8 23.8
100 GPM     122 134     172 192   210 222   240 277     322
HP     12.5 13.5     17.5 19.7   20.2 22.1   23 27.9     35.3
125 GPM       130     162 182     235     267
HP       17     20.1 22     25.5     32.4


125 PSI (862 KPA) maximum inlet and discharge pressure

750 RPM maximum. (See speed vs. viscosity curve for maximum RPM).

350ºF (177ºC) maximum temperature for standard packing.

212ºF(100ºC) maximum temperature for BUNA-N mechanical seal

400ºF (204ºc) maximum temperature for Viton mechanical seal

Consult Ranger for any application over 350ºF (172ºC)

Ranger Pumps can be supplied as standard with stuffing box packing or single mechanical seals. They can be easily converted from one arrangement to the other. Several types of both packing and seals are available for various applications; for example - high temperatures or corrosive conditions. Contact Ranger for application assistance.

Part Standard Materials Options
Housing & Backplates ASTM A48
Class 30 Cast Iron
Gears Iron Alloy
Shafts Carbon Steel 440 Stainless Steel
Bearing Bushings Bronze Carbon
Iron
TFE/Graphite
R.V. Parts Carbon Steel Stainless Steel
Gaskets Fiber Aluminum
Hardware Zinc Plated Steel



Positive shaft and gear support with four internal bearings

Dowel pins insure positive pump alignment

Hardened gears and shafts for long service life

Integral speed reducer available as option

Field adjustable relief available

Fabrication options include Base, Coupling, and Drives



A relief valve is needed for the pump system to protect the pump from over-pressure. The valve can be positioned to provide protection for the discharge. *
A high pressure spring is available to give a full range of relief settings.

*See Installation, Operation and Maintenance manual for details

Read Installation, Operation, and Maintenance Manual before installing, performing maintenance, or operating a Ranger Pump.

Identifying direction of rotation mounting

Hi-Drive Pumps

Lo-Drive Pumps
Y: Clockwise Rotation W: Clockwise Rotation LY: Clockwise Rotation LW: Clockwise Rotation
Z: Counterclockwise Rotatin X: Counterclockwise Rotatin LZ: Counterclockwise Rotatin LX: Counterclockwise Rotation

Piping Direction

Piping direction is determined when facing the drive shaft. These diagrams will serve as a helpful basis for you to determine the direction of rotation wanted according to your piping system.
